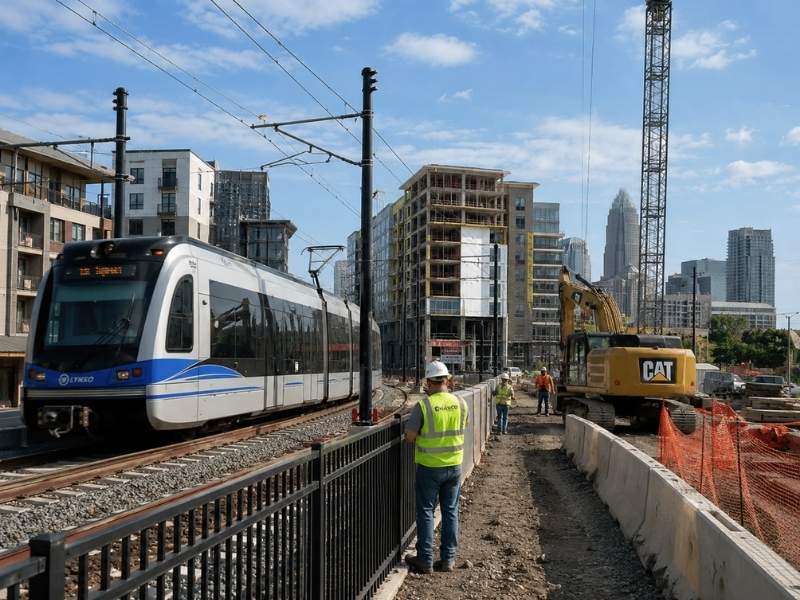

New buildings keep rising in the South End, often just steps from the LYNX Blue Line. When your site sits next to an active track, your construction plans have to show more than a normal lot ever would. The trains, the wires above them, and the safety zone around them all shape what you can draw and build.
Building next to a live transit line adds a layer that a normal site never deals with. Your plans have to prove the work stays clear of the track. They also have to satisfy a second reviewer beyond the city. Miss that, and your project can stall before the first shovel hits the ground.
The Safety Envelope That Has to Show Up on Your Plan Set
Every active track has a zone around it that construction cannot enter. The transit agency sets a clearance measured out from the center of the track, both side to side and up in the air. Your construction plans draw that zone as a hard line, a “do not encroach” boundary that no work can cross.
That line changes how you lay out the whole site. Staging areas, material laydown, and equipment parking all have to sit outside the zone. If a crane, a stockpile, or a trailer lands inside it, the plan gets kicked back.
The plans also have to show proof, not just intent. That means dimensions from the track, fencing or barriers along the edge, and clear notes about what stays out. A reviewer wants to see the gap on paper before anyone trusts it in the field.
Why CATS Sign-Off Comes Before Your Building Permit
Work near the Blue Line usually needs a nod from the transit agency, not just the city. Sites close to the track often need a track-access or right-of-entry agreement in hand first. Without it, your local permits can sit and wait.
The agency reviews your construction plans on top of the city’s review. They look at how close the work gets, how it is protected, and when it can happen. Flagging and set work windows get written right into the drawings so crews know the rules.
Most owners never see this second round of approval coming. They plan around the city calendar and forget the agency runs its own. Building that review into your schedule early keeps it from turning into a surprise later.
Designing Around the Overhead Contact System
The trains draw power from live wires strung above the track. Those wires carry current, and getting near them is a real danger. Your plans have to keep cranes, booms, and tall gear a safe distance away.
Crane swing paths become a design item, not a field guess. The plans call out equipment height, boom reach, and how material moves near the line. A load that swings over or close to the wire is a hazard the drawings have to rule out.
Sometimes safe distance alone is not enough. The wire may need to be shut off, or the agency may set up its own protection around the work. That has to be scheduled with them ahead of time, never assumed on the day of.
Vibration, Settlement, and Shoring Next to a Live Track
Digging next to a track can shift the ground the rails sit on. Your shoring has to hold back the soil so the trackbed keeps its support. The plans spell out how the excavation is braced and how deep it can go.
Heavy work also sends vibration through the ground. Too much can loosen the track or settle the soil under it. Plans near the rails set monitoring points and limits, so crews watch movement instead of hoping for the best.
Some methods get limited this close to the line. Pile driving, for example, may be swapped for a quieter way to place support. The plans note where that trade has to happen so no one drives piles right beside the rails.
Keeping Runoff, Utilities, and Crossings Clear of the Line
Water is a quiet threat to a track. Your grading and drainage have to send runoff away from the ballast and the trackbed. Plans show the flow moving to inlets and pipes, never toward the rails.
New utility lines often have to cross under the track. Open cutting through the line is rarely allowed, so the plans call for boring or jacking the pipe underneath instead. That keeps the track in one piece and the trains running while the work goes in.
People and cars still need to move during the build. The plans lay out pedestrian routes and traffic control at the crossing so the line and the sidewalk stay open. A safe path around the work protects riders, drivers, and your crew at once.
Frequently Asked Questions
Do I need transit agency approval if my site is next to the tracks but not on their property?
Often the answer is yes. Work close enough to affect a live line usually falls inside a coordination or impact zone. That zone can trigger agency review even when your parcel sits off their land. The safe move is to ask early, before you assume the city is your only reviewer.
How close can construction equipment get to the light rail line?
Not past the clearance zone measured from the center of the track. Equipment also cannot reach into the airspace where the overhead wires run. The exact limits come from the transit agency’s own standards, and they get drawn onto the plans. Treat those lines as fixed, not as a suggestion.
Can construction happen while trains are still running?
Usually only under set conditions. Work near the track is often held to approved windows or non-revenue hours, such as late night. Flaggers are commonly required to watch the line while crews work. All of that gets written into the plans so the timing stays clear.
